2HXYP20-10
Can't find what you're looking for? Go to the Product Selector

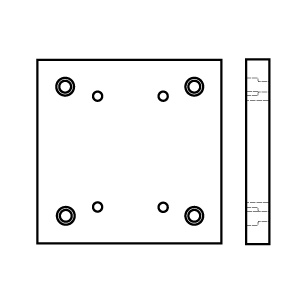

直線運(yùn)動(dòng)單元, X-Y ADAPTER PLATE 2H20 TO 2H10
- Can be used to mount one unit to another to create a Multi axis assembly

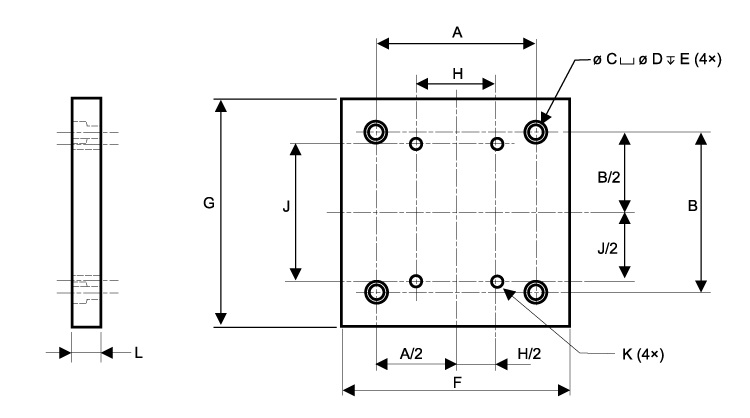

| 尺寸 | 價(jià)值 |
|---|---|
| [A] | 145 毫米 |
| [B] | 145 毫米 |
| [C] | 10.5 毫米 |
| [D] | 16.5 毫米 |
| [E] | 11 毫米 |
| [F] | 200 毫米 |
| [G] | 200 毫米 |
| [H] | 85 毫米 |
| [J] | 120 毫米 |
| [K] | M8 x 1.25 - 6H |
| [L] | 22 毫米 |
